Class Code Detail Maintenance

Use Class Code Detail Maintenance to maintain vehicle classes with their associated rates and codes.  The purpose of class codes is to group vehicles into types of vehicles such as, car, truck, trailer, etc.  Class codes can also identify specialty license plates, such as, lobster, loon, black bear plates or the status of the owner as in the case of a veteran.  The Class Code is used to determine the vehicle registration rates and additional fees as is with specialty plates.

• Generally, the Class Codes are set during installation and upgrades and do not change.

• The Post Receipt Transactions automatically update the appropriate values for the class codes.

• For more information about working with data in fields, see the Data Entry Guidelines.

Directions:

To see directions for...

• Opening Class Code Detail Maintenance, click More.



  1.  Click File Maintenance from the Menu Bar.

  2.  Click Class Code Detail.

  Tip:  Or, use the keyboard shortcut:  [ALT] [m] [d].

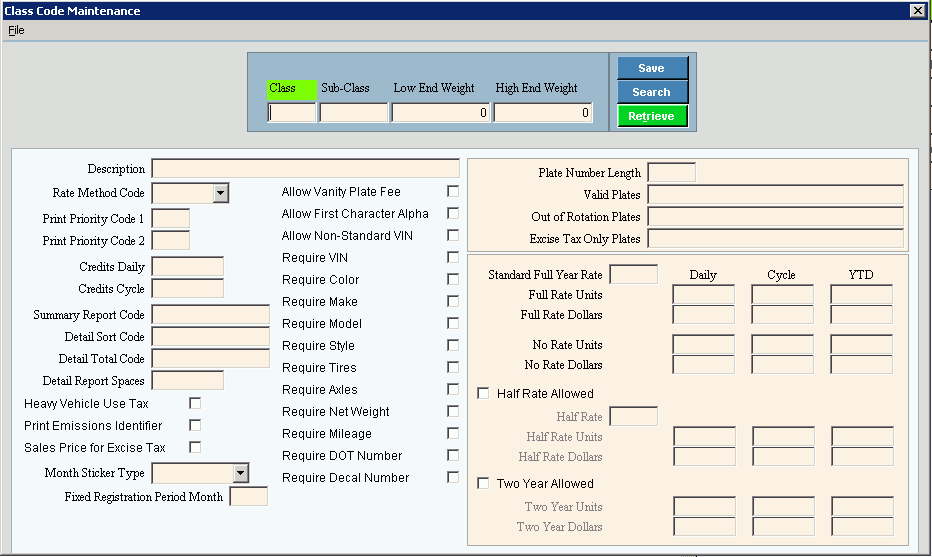

  Class Code Detail Maintenance Window Example:





• Creating a New Class Code Detail Record, click More.



  To create a new record choose one of these methods:

  • Enter the new Class, Sub-Class, Low End Weight, High End Weight and click Retrieve , or press [ENTER].
    Keyboard shortcut:  [ALT + t]

  • Or, enter the new Class, Sub-Class, Low End Weight, High End Weight and click File from the Menu Bar; next click New.
    Keyboard shortcut:  [ALT] [f] [n]

  Tip:  To indicate that you are building a new Class Code Detail, New  displays near the Class Code Detail ID.  Default entries display and the first field is highlighted to let you know you can begin entering information.



  Class Code Detail Maintenance Prompts Tip:  To see more information about a field, click the hyperlink for the field name.
  Description	Enter the description for the Class Code. (up to 6 characters)
  	To update the new or changed information, click Save or press [ENTER]. Keyboard shortcut:  [ALT + s]
  	CAUTION To avoid losing data, you must save new or changed records.
  	To view all of the existing YourRecordNames, click Search.  From the Search list you can select the record to change or delete. Keyboard shortcut:  [ALT + r]
  	To display an existing YourRecordName, enter the KeyFieldCodeID and click Retrieve, or press [ENTER]. Keyboard shortcut:  [ALT + t]
  Rate Method Code	To specify the code used to determine the rates charged for registration, click a choice in the drop-down list. (up to 6 characters)
  Priority Code 1	Enter the defined priority code assigned to the phrase to print on the registration form. Note:  For more information, see Priority Maintenance.
  Priority Code 2	Enter the defined priority code assigned to the phrase to print on the registration form. Note:  For more information, see Priority Maintenance.
  Credits Daily
  Credit Cycle
  Summary Report Code	Enter the value used to determine the print position on the Town Summary Report.
  Detail Sort Code	Enter the value used to determine the print position on the Town Detail Report.
  Detail Total Code	Enter the total code that determines the grand total and sub-total categories into which this category is accumulated  (broken into four 4-character sections).
  Detail Report Spaces	Enter the value used to assign indentation space on the Town Detail Report.
  Heavy Vehicle Use Tax
  Print Emissions Identifier
  Sales Price for Excise Tax
  Month Sticker Type
  Fixed Registration Period Month
  Allow Vanity Plate Fee
  Allow First Character Alpha
  Allow Non-Standard VIN
  Require VIN
  Require VIN
  Require Color
  Require Make
  Require Model
  Require Style
  Require Tires
  Require Axles
  Require Net Weight
  Require DOT Number
  Require Decal Number
  Plate Number Length
  Valid Plates
  Excise Tax Only Plates
  Standard Full Year Rate	Enter the dollar amount for the standard full year registration rate for the class code. (4.2 numeric)
  Full Rate Units	Displays the daily, cycle and year-to-date full rate units.  The Full Rate Units is updated by the Post Receipts process.
  Full Rate Dollars	Displays the daily, cycle and year-to-date full rate dollar amount.  The Full Rate dollars is updated by the Post Receipts process.
  No Rate Units	Displays the daily, cycle and year-to-date no rate units.  The No Rate Units is updated by the Post Receipts process.
  No Rate Dollars	Displays the daily, cycle and year-to-date no rate dollars.  The No Rate Dollars is updated by the Post Receipts process.
  Half Rate Allowed	To specify if half-year registrations are allowed for the class code, click to select the box. Or, if half-year registrations are not allowed for the class code, leave this box blank. Note:  The following fields pertaining to half-year registrations are only active if you select Half Rate Allowed.
  Half Rate	Enter the dollar amount for the half-year registration rate for this class code. (4.2 numeric)
  Half Rate Units	Displays the daily, cycle and year-to-date half rate units.  The Half Rate Units is updated by the Post Receipts process.
  Half Rate Dollars	Displays the daily, cycle and year-to-date half rate dollars.  The Half Rate Dollars is updated by the Post Receipts process.
  Two Year Allowed	To specify if two-year registrations are allowed for the class code, click to select the box. Or, if two-year registrations are not allowed for the class code, leave this box blank.
  Two Year Units	Displays the daily, cycle and year-to-date two year units.  The Two Year Units is updated by the Post Receipts process.
  Two Year Dollars	Displays the daily, cycle and year-to-date two year dollars.  The Two Year Dollars is updated by the Post Receipts process.



• Editing an Existing Class Code Detail Record, click More.



  CAUTION:  To avoid losing data, you must save new or changed records.

  1.  To display the record to be changed, enter the Class, Sub-Class, Low End Weight, High End Weight and click Retrieve , or press [ENTER].
  Keyboard shortcut:  [ALT + t]

  Tip:  If you do not know the Class Code Detail ID, you can click Search  to see a list of Class Code Detail records.

  2.  To position the pointer to the information that you want to change, press [TAB] or click the field using the mouse.

  3.  Enter the data changes.

  4.  To complete the edit process, click Save , or press [ENTER].
  Keyboard shortcut:  [ALT + s]



• Deleting an Existing Class Code Detail Record, click More.



  1.  To display the record to be deleted, enter the Class, Sub-Class, Low End Weight, High End Weight and click Retrieve , or press [ENTER].
  Keyboard shortcut:  [ALT + t]
  Tip:  If you do not know the Class Code Detail ID, you can click Search  to see a list of Class Code Detail records.

  2.  Click File from the Menu Bar, and next click Delete.
  Keyboard shortcut:  [ALT] [f] [d]

  3.  At the Delete Records prompt, click Proceed to delete the record, or click Cancel to escape from the delete routine.

  Example:





  Note:  After you click Proceed, you will see the following message on the Status Bar.
